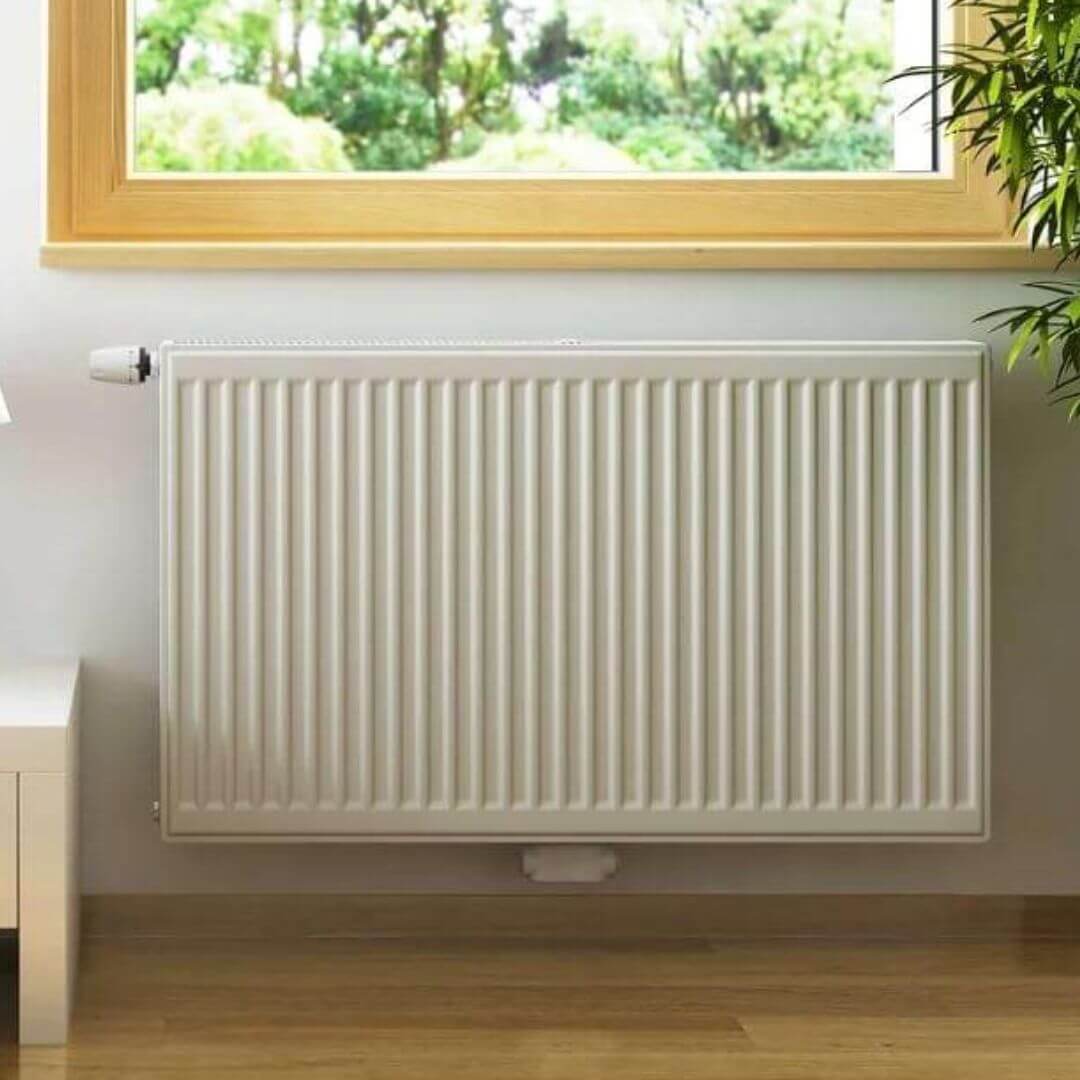

Radik VKM8 steel panel radiator range is designed for central heating systems in buildings with the highest allowed working pressure of 10 bar where water or water solutions are used as the heating medium. The radiators are equipped with inner distribution pipelines and inserted regulation valve. The original design of the inner distribution pipelines allows various connections of the radiators to the heating system. Primarily, these radiators are designed for bottom middle connection.

The Radik VKM8 steel panel radiator range comprises single, double, and triple convector radiators in 6 heights with lengths from 500mm to 3000mm. Therefore offering 412 alternatives of different sizes.

€136.93 – €438.73

• RAL 9016 White finish
• All connections are on the front header
• Connections 1/2″ BOE (Bottom Opposite End) except where indicated
  with * (* = 3/4″ connections) Left hand flow
• Wall to centre of connections – 94 mm
• Pipe to pipe centres = Length of radiator + 12 mm + Valves
• Made to measure sizes & other RAL Colours available.

Please find the stock brochure attached in the downloads to check your respective outputs.
