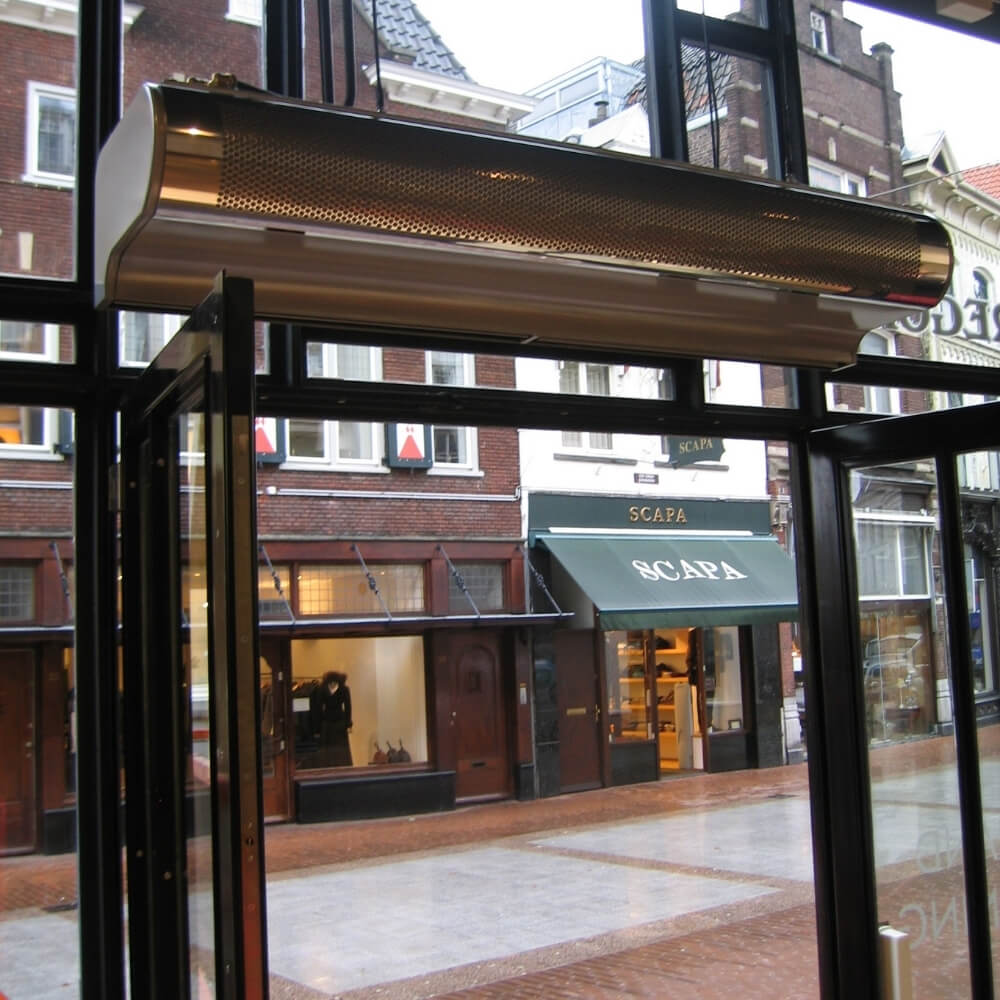

Nouveauline designer air curtain is built with self supporting sheet steel, with concealed fixing knock on corners for an elegant looking finish.

The standard modern colour is a white aluminium (RAL 9006), other RAL colours are available on request. Inlet grilles made of 3D perforated plate for filterless and easy to maintain operation.

• Outlet grille with 5 steps adjustable aluminium vane (anodized) for optimal air distribution
• Access door for maintenance opens together with the intake grille downwards.
• Inlet grilles made of 3D perforated plate for filterless and easy to maintain operation.
• Threaded hole M8 for ceiling mounting. Jetflow nozzle multiple adjustable, for a low noise development – better protection of the air flow in certain situations, continuously adjustable exhaust angle and exhaust opening.
• Vibration-free bedded EMC radial fans, separately powered, with motor overload protection unit. Threaded hole M8 for ceiling mounting.
• The electronic 5-level standard control panel Tronic EC with serially fitted manual/auto function, summer/winter function and contacts for additional external signallers.
• It is possible to shunt up to 12 devices.
• The electronic standard control panel Tronic E form electrical heating feature s a contact for connection a room thermostat to it. 5 fan speeds output, 3-level heater performance.
• Multiple control is not possible.
