Wing Effect

Wing Effect

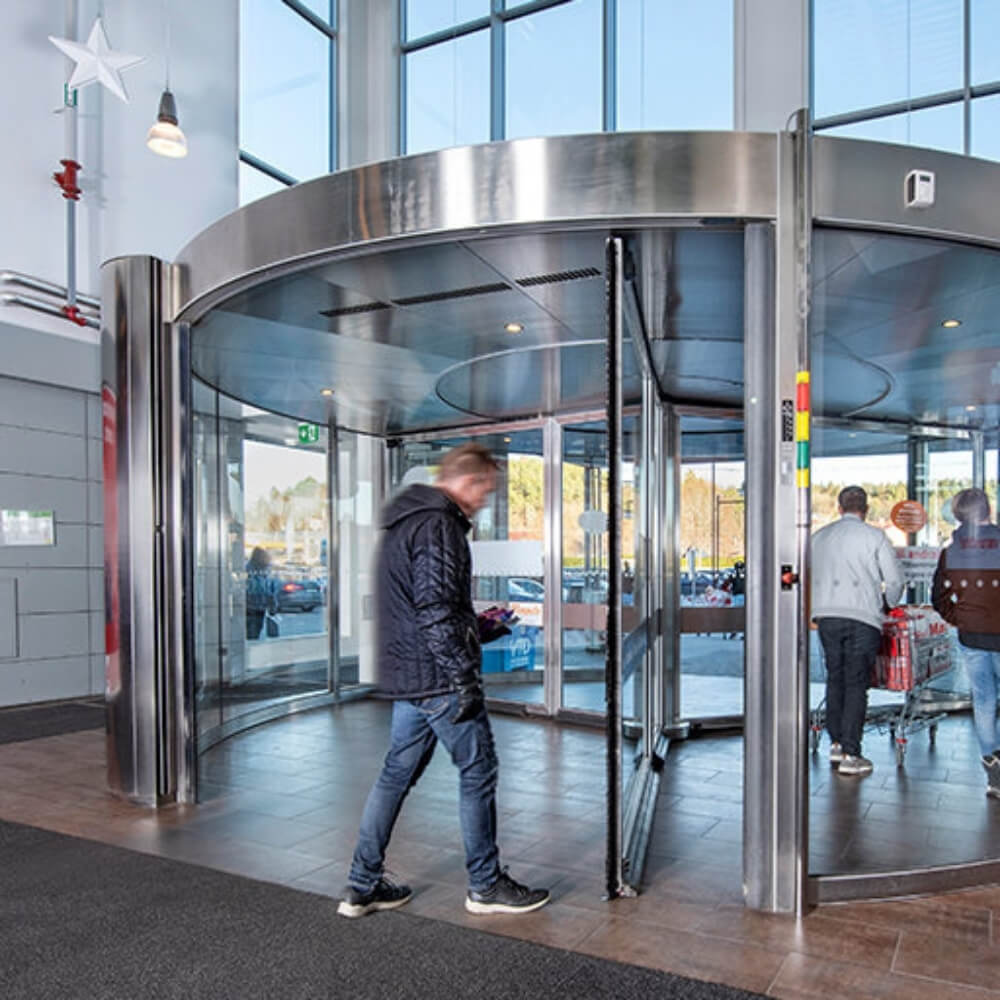

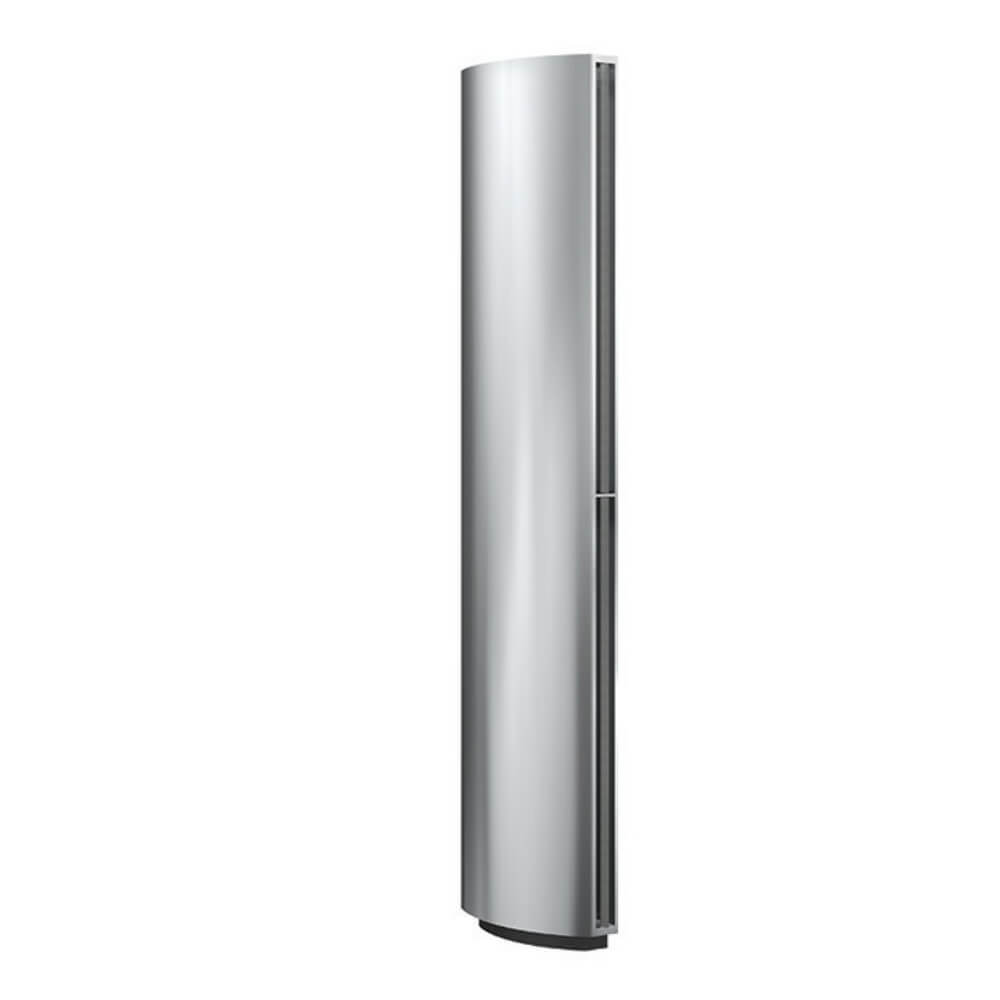

Wing Effect air door curtain is a vertical air curtain specially designed for revolving doors, with a curved design that integrates neatly with the door.

The air curtain is adapted to customer needs and equipped with energy-efficient EC motors which enable stepless control of the airflow.

Together with the intelligent FC control system, the air curtain allows you to easily optimize your comfort and save energy.

Available in every RAL colour or Stainless steel.

  • The Wing Effect uses a special jetflow nozzle continuously adjustable exhaust angle and exhaust opening.
  • Fine inlet screen and reusable filter that can be removed without tools for easy cleaning. Special Jetflow blow-out nozzle.
  • Upright installation via tapped holes in the base plate and with recess for hidden power connections (for PWW/electrical).
  • High-efficiency Cu/Al heat exchangers (PWW) or finned tube heat exchangers (electrical) with easy to service, stable ribs and rib spacing.
  • Double inlet, direct drive shock-mounted centrifugal fans, motor protected by thermal contact and electronic speed control. Fully assembled and wired.
