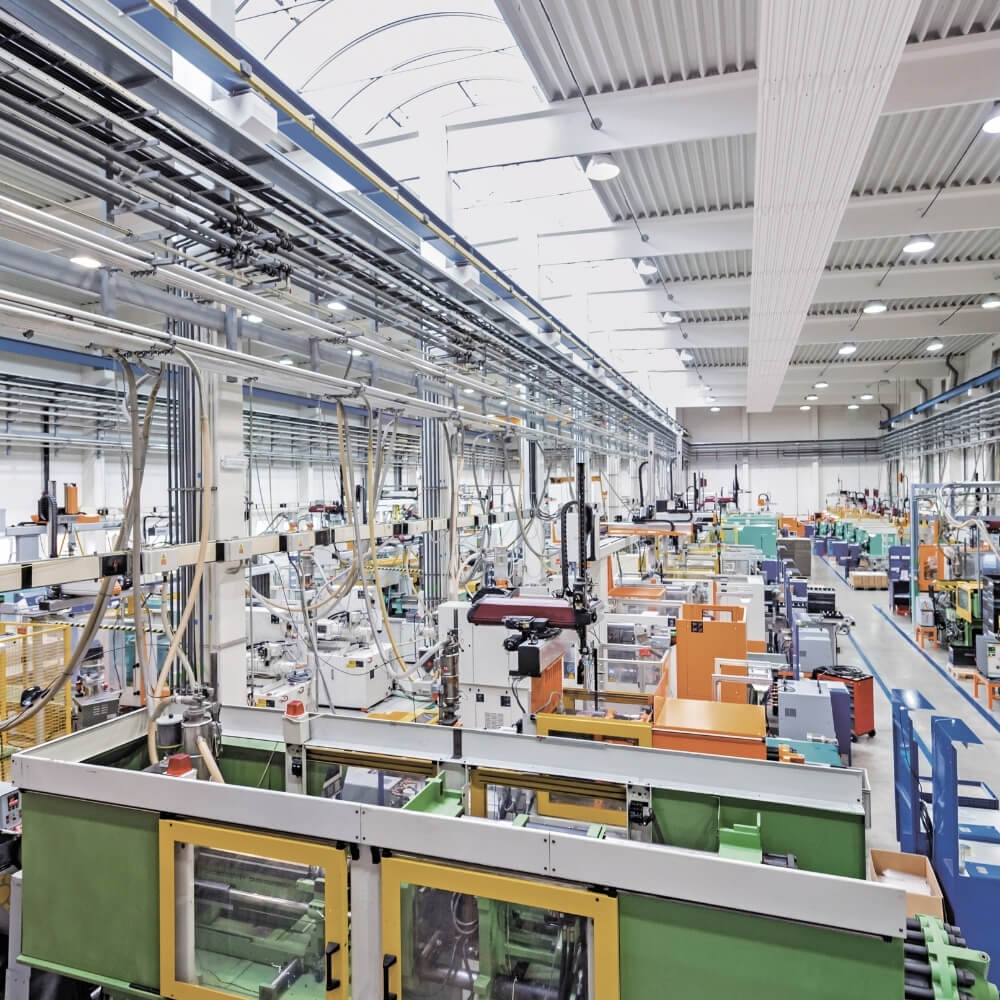

ZFP radiant ceiling panels heat and cool a building comfortably and efficiently. They can be used in all rooms from approximately 2 m to 50 m in height and compared to other systems, they can achieve energy savings of up to 40%.

ZFP radiant ceiling panels are available in a variety of designs.

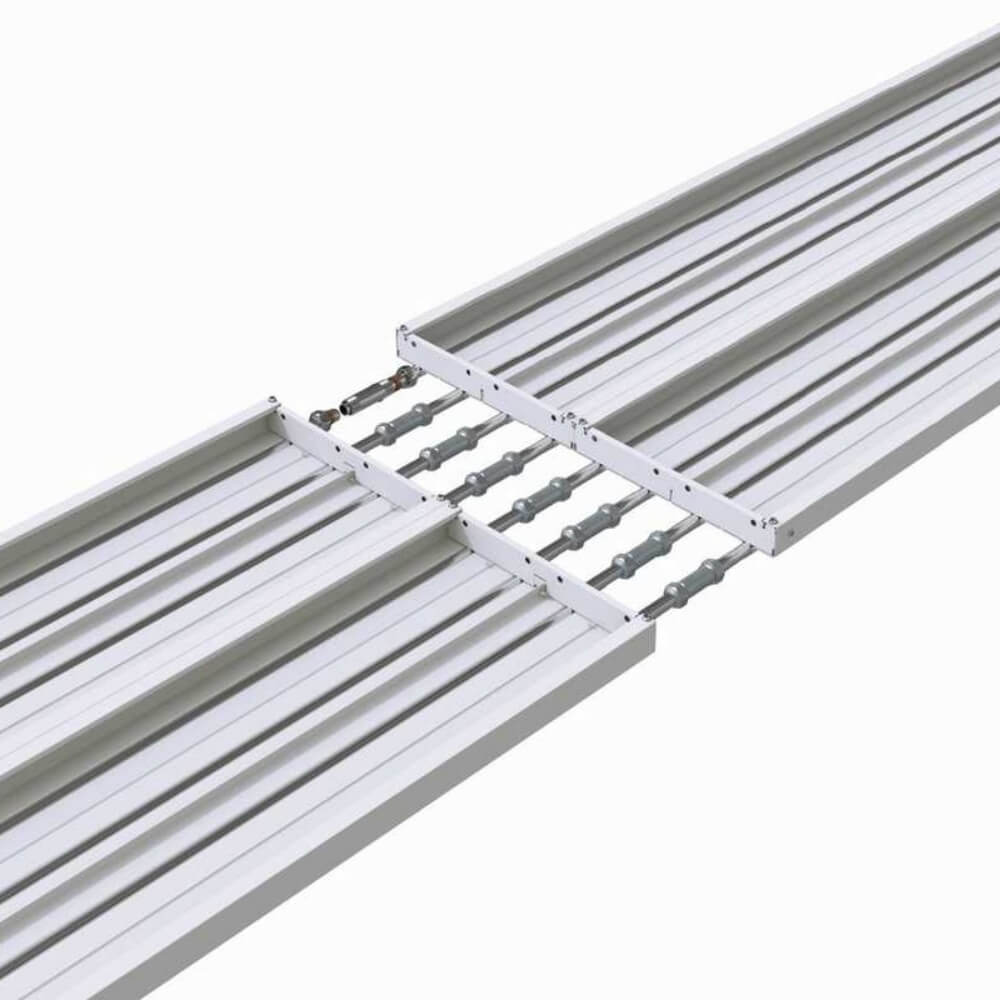

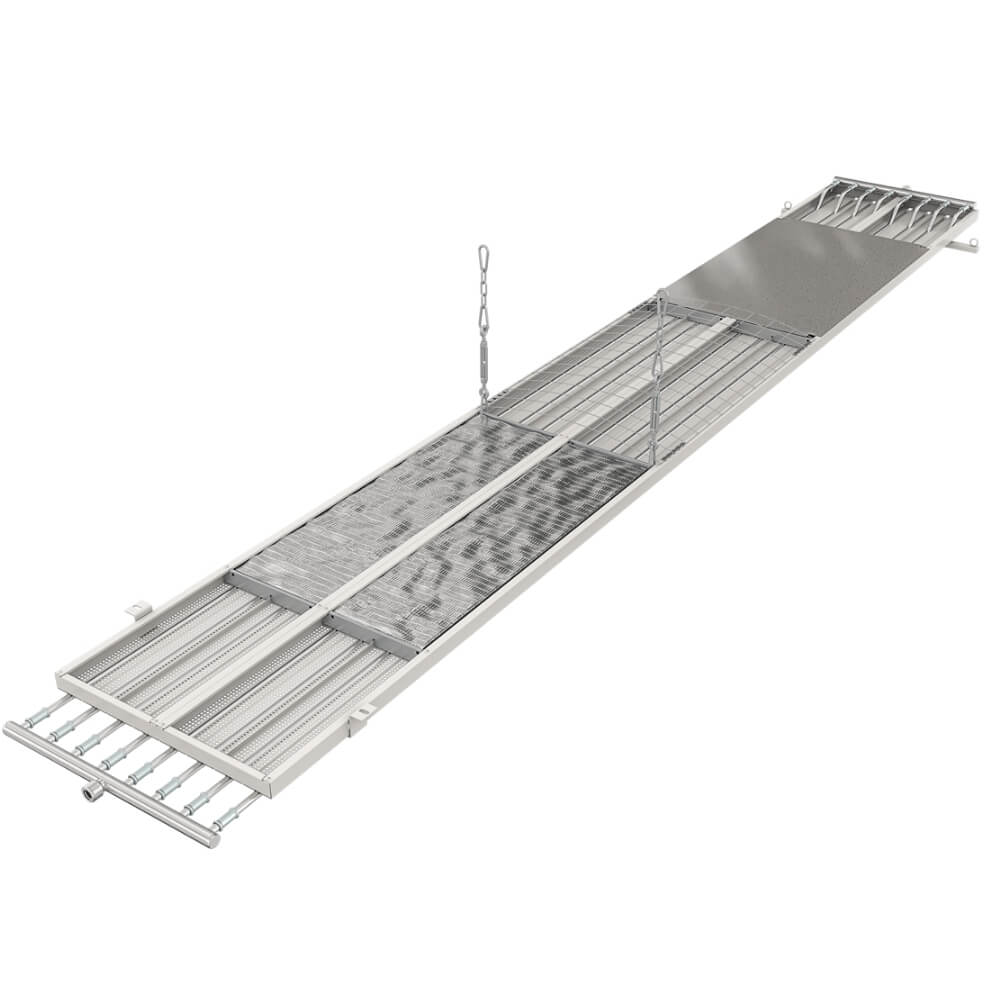

The individual elements of the Zehnder ZFP are designed as an innovative modular system and can be combined with each other according to the project requirements to create tailored project solutions. Each project is produced to customers’ specific order requirements and supplied in line with the on-site workflow.

Get in touch to find out more.

• The flexible modular design provides the perfect heating and cooling solution for any space.
• Consistent and full galvanisation of all components ensures a long service life – an economic investment in the future.
• ZFP does more than keep buildings comfortably warm in winter – it also cools them down in summer without causing draughts so that a pleasant temperature is maintained all year round.

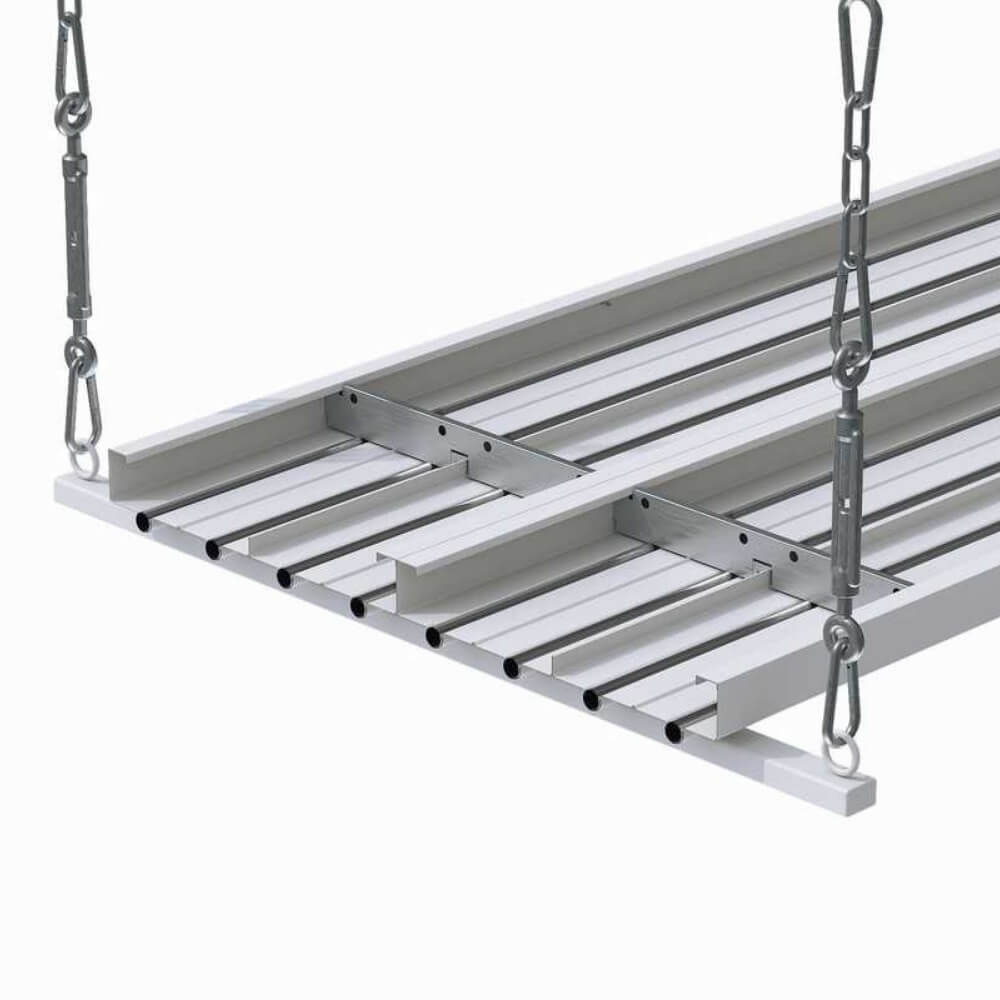

• The high stability of the modules means that only a few suspension points are required – significantly reducing the required installation time.
• Weighing only around 14 kg/m², can even be used for low roof loads.
• With a pipe diameter of just 15 mm, ZFP has a harmonious design that blends seamlessly into any architecture.
• Can achieve a proportion of radiation of over 80%, meaning that the supplied energy can be transferred effectively.
• Can be operated with a broad range of system temperatures. That is why it can be combined with modern heat pumps with their lower flow temperatures without any problems.
