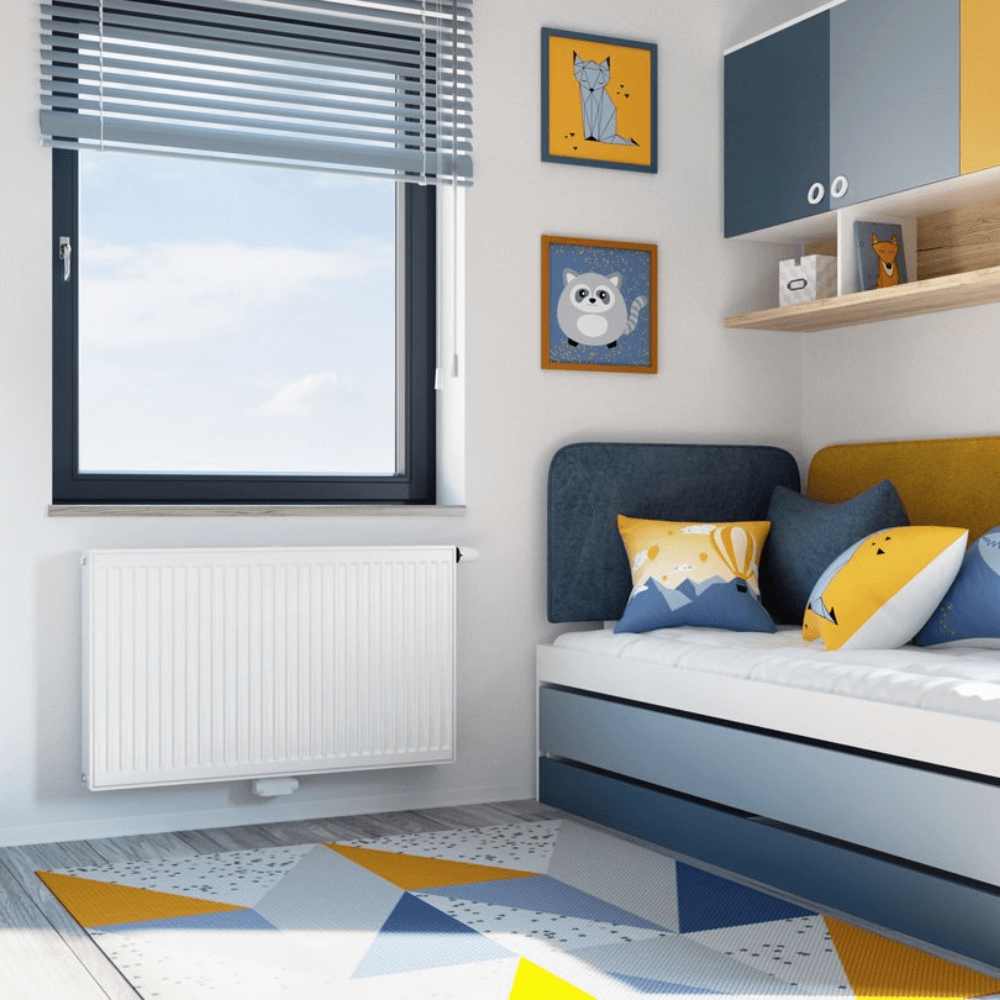

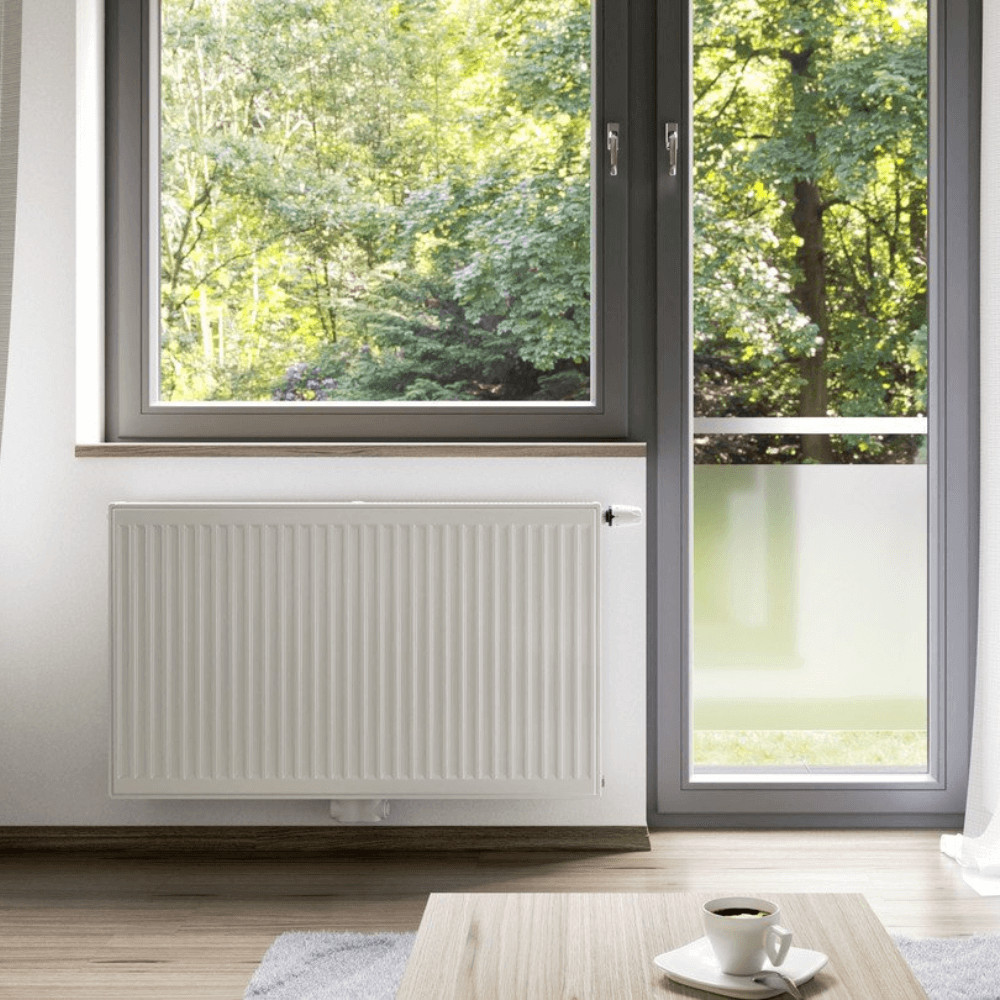

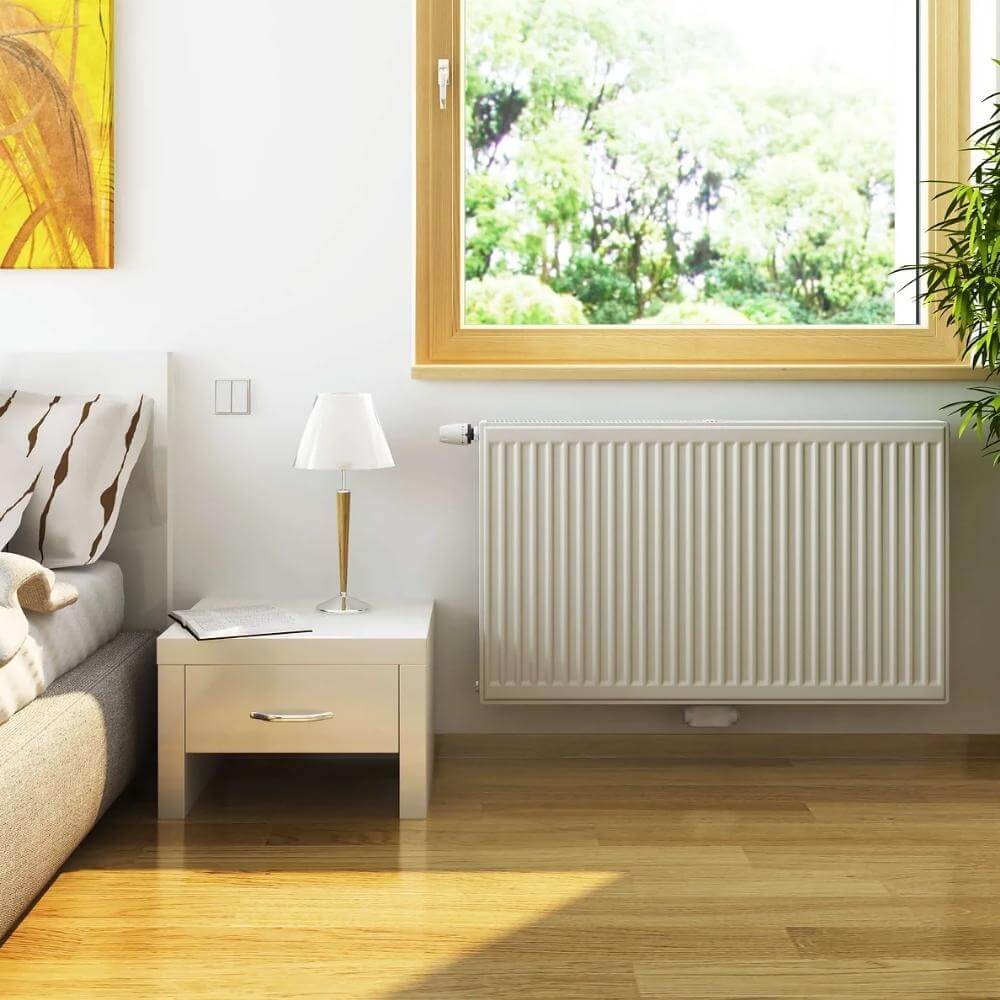

Radik VKM8 steel panel radiator range is designed for central heating systems in buildings with the highest allowed working pressure of 10 bar where water or water solutions are used as the heating medium. The radiators are equipped with inner distribution pipelines and inserted regulation valve. The original design of the inner distribution pipelines allows various connections of the radiators to the heating system. Primarily, these radiators are designed for bottom middle connection.
The Radik VKM8 steel panel radiator range comprises single, double, and triple convector radiators in 6 heights with lengths from 500mm to 3000mm. Therefore offering 412 alternatives of different sizes.
heat output from 467 to 5448 W
bottom middle connection, bottom right connection

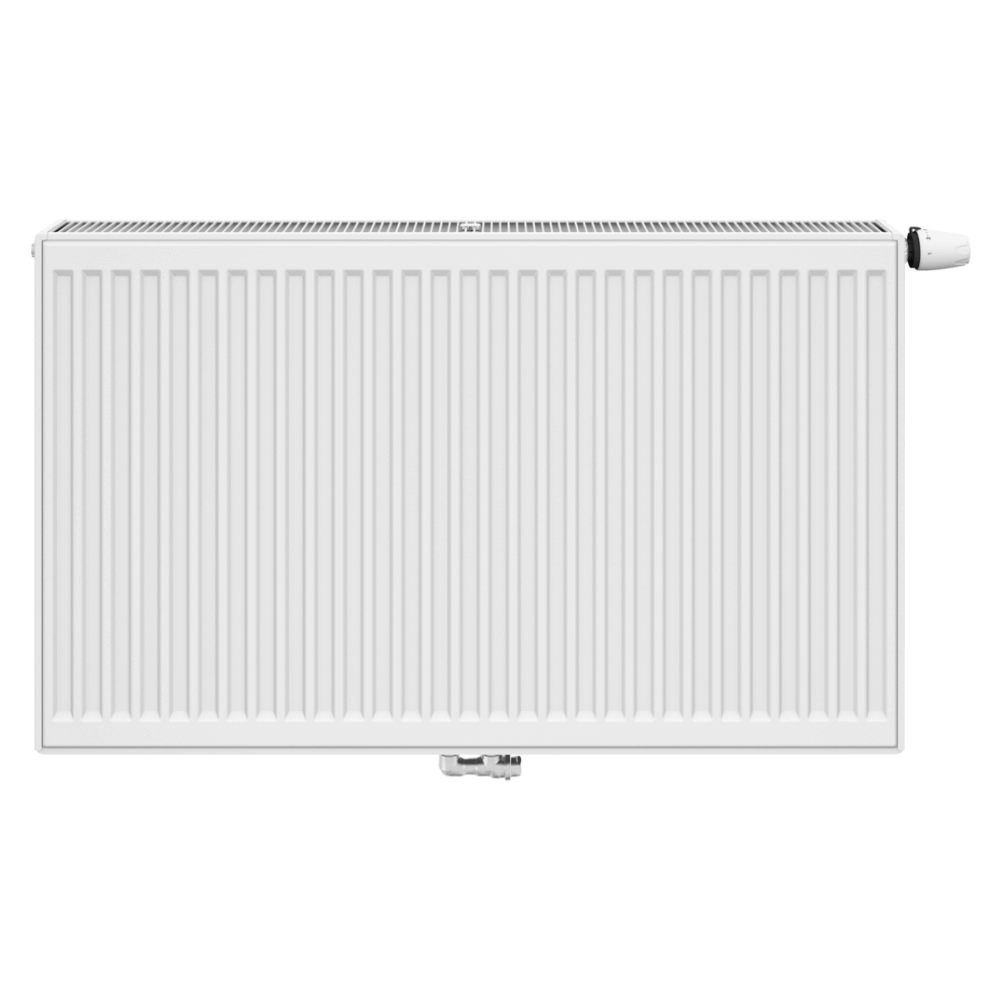

Radiators with corrugated front panel which allows bottom middle or bottom right connection
Types 20, 21, 22, 33 have no hangers welded to the back side and is therefore possible to turn the radiator and to use its bottom left connection
10 Bar Test Pressure
3 phase paint finish, RAL 9016
Other colour finishes available
Outputs tested to EN442
