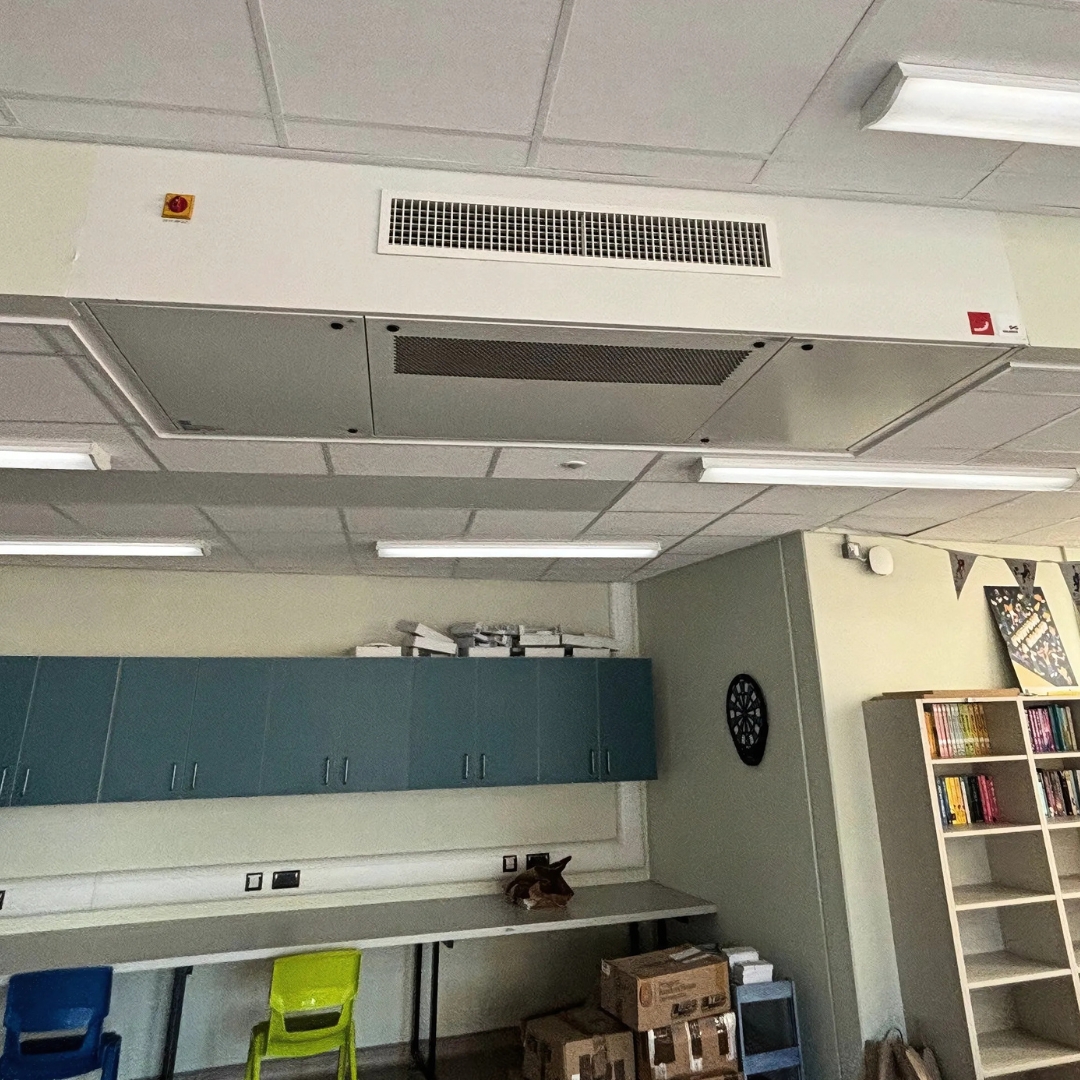

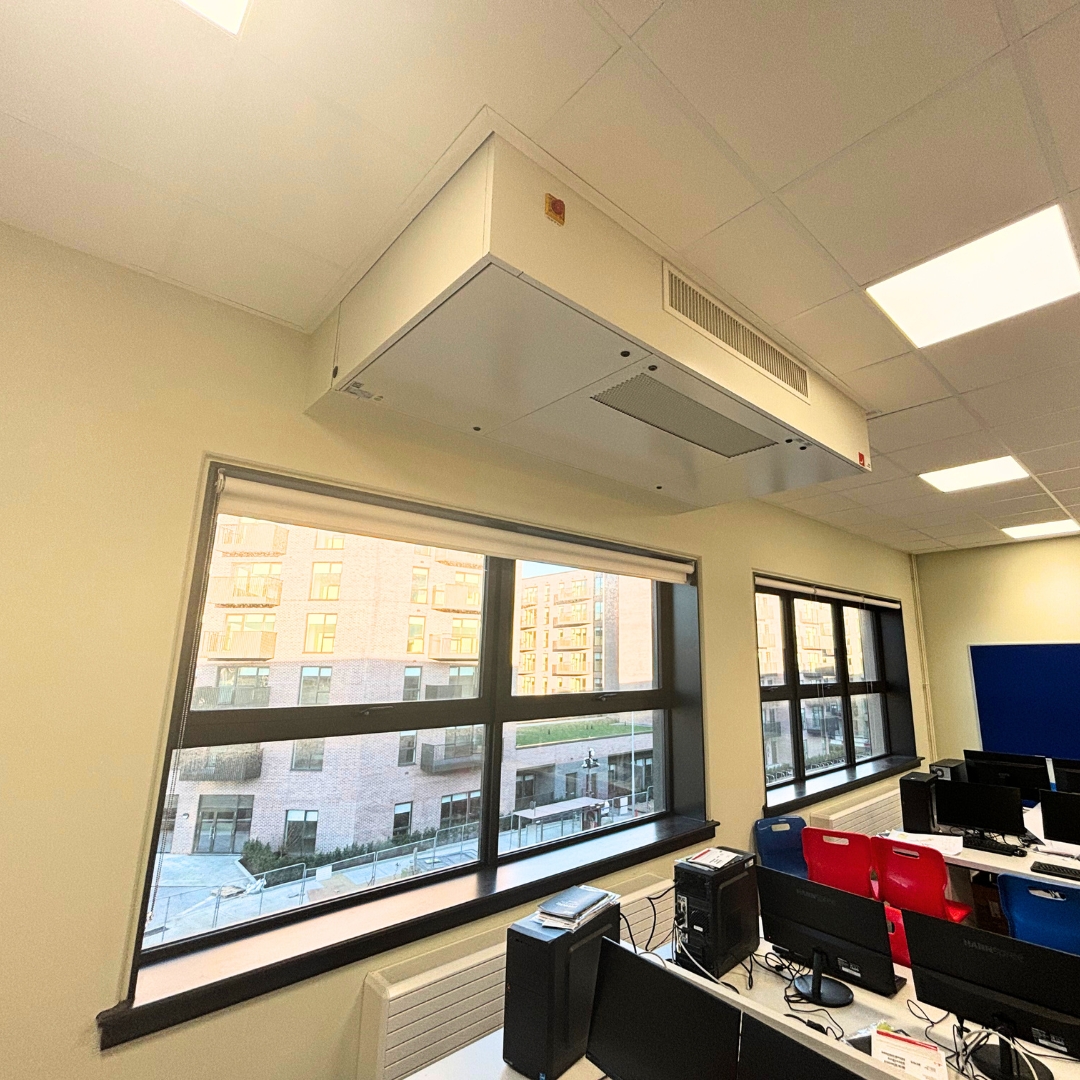

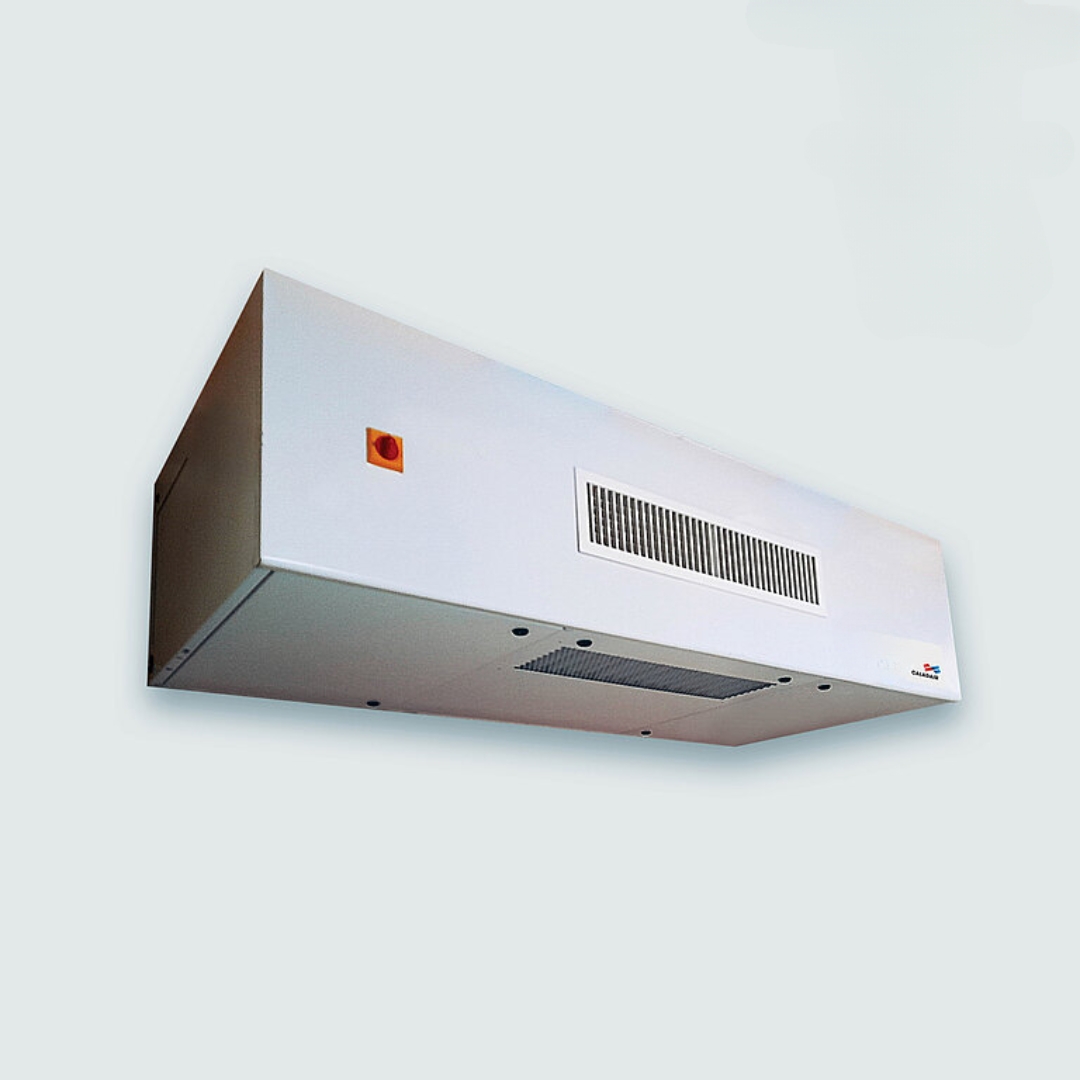

Decentralised self-regulating heat recovery unit, high efficiency and performance, for room-by-room applications such as classrooms, day nurseries, offices, shops, etc. Monobloc and compact unit, fully visible or recessed under false ceiling via an included a patented mounting frame. Access from below to all components, including filter change. All internal components are factory mounted and programmed according to the selected configuration.

  • Ideal for installation in false ceilings and renovations, with its patented mounting system.
  • Based on 4 patented innovations : support frame kit, removable panels, internal damper system, mobile and articulated hinges.

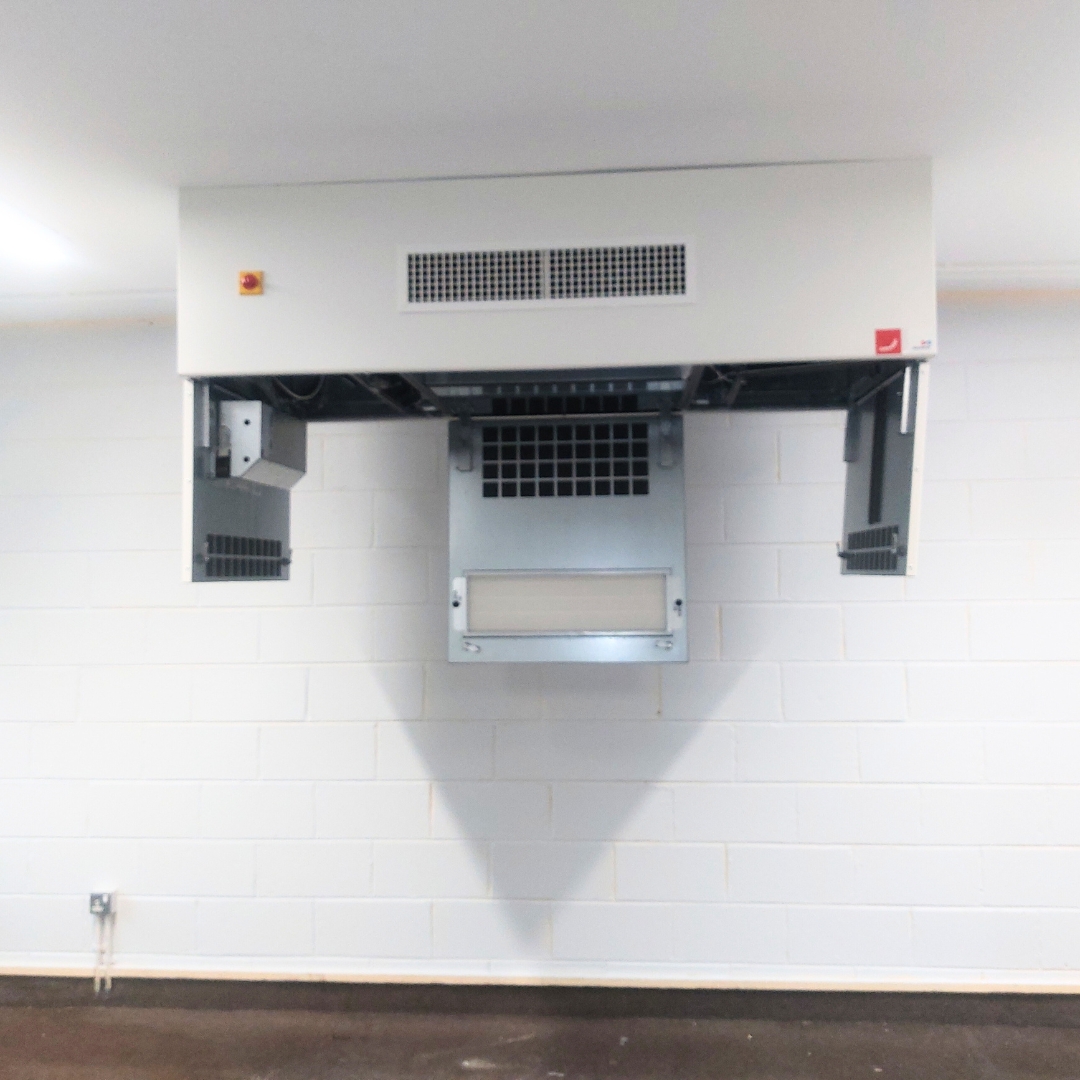

  • Access to all components from below via opening panels.
  • Condensate drain tray for heat exchanger and coils (CO and DXR), as well as heat exchanger, are easily removed for simple maintenance.
  • Optimal inside air quality thanks to possible dual filtration on fresh air (ePM1 55% [F7] + ePM10 50% [M5] or ePM1 80%[F9]). Included ePM10 50% [M5] filter for exhausted air.
  • Silent operation is ensured due to the double-skinned panels with high-density thermal insulation (25 mm mineral wool). Thermal class T3 and airtightness class L2 in accordance with EN 1886.
  • User interfaces installed as standard with remote possibility. Flexible and easy connection to BMS with on-board communication protocols (Modbus, BACnet and Web)
  • Solution complying with the requirements of the ErP Directive 2018
