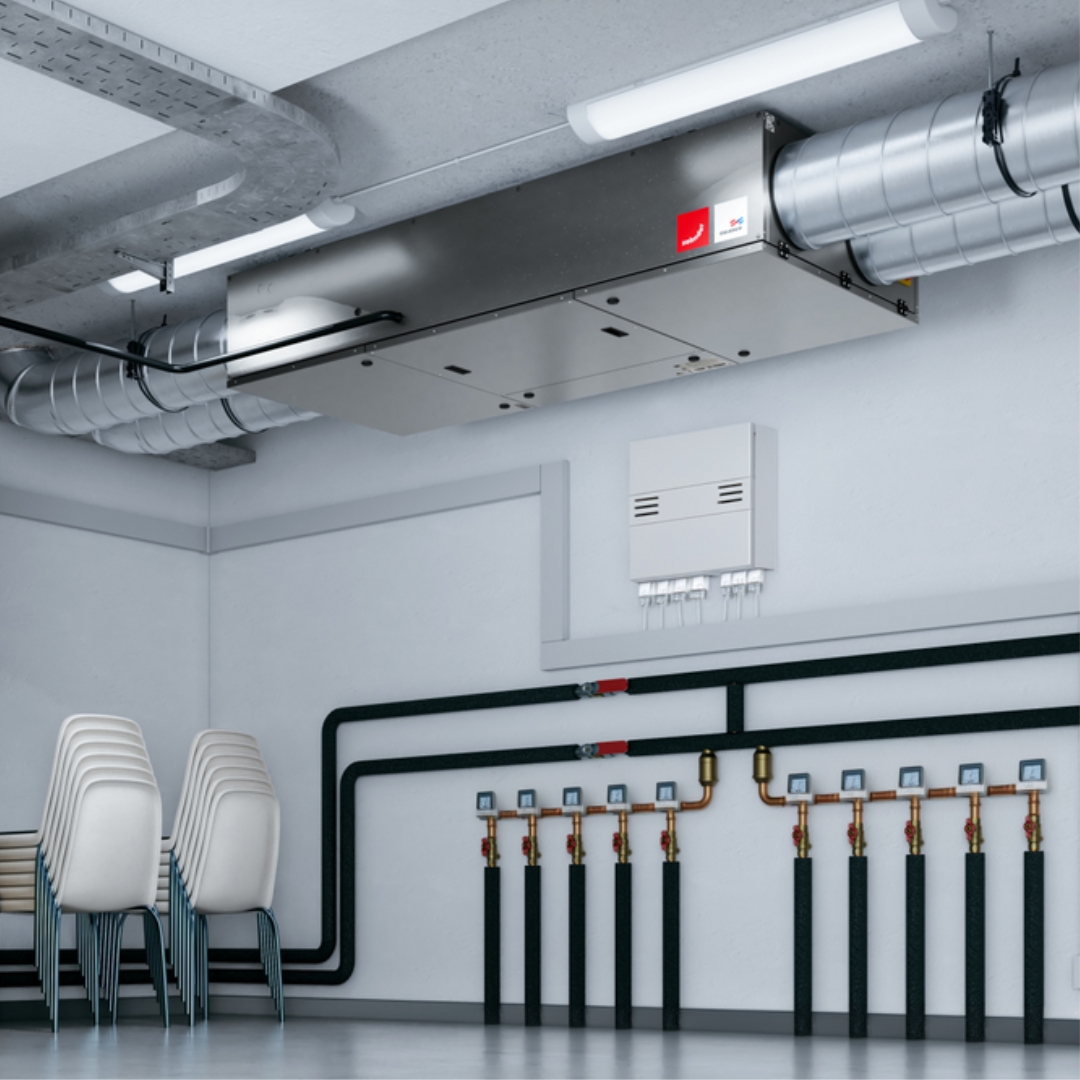

Self-regulating heat recovery unit, high efficiency and performance, for tertiary and industrial applications such as offices, schools, care homes, shopping malls, catering facilities, multi-family housing, etc. Monobloc unit, compact and extra-flat for installation in false ceilings via an included a patented mounting frame. Access from below to all components, including filter change.

All internal components are factory mounted and programmed according to the selected configuration. It’s our PLUG&PLAY – SET& FORGET™ concept! Aluminium counterflow heat exchanger with over 90% efficiency (EN308), compliant ErP Directive 2009/125/EC. Air filtration and temperature management for optimal comfort and IAQ.

  • Ideal solution for false ceilings installation, with patented mounting system
  • Access to all components from below via hinged panels
  • Condensate drain trays for heat exchanger and coils (CO and DXR), as well as heat exchanger, are easily removed for simple maintenance.
  • Optimal inside air quality thanks to possible dual filtration on fresh air (ePM1 55% [F7] + ePM10 50% [M5] or ePM1 80%[F9]). Included ePM10 50% [M5] filter for exhausted air.
  • Silent operation is ensured by double-skinned panels with high-density thermal insulation (25 mm mineral wool). Thermal class T3 and airtightness class L1 in accordance with EN 1886.
  • User interfaces installed as standard with remoting possibility. Flexible and easy connection to BMS with on-board communication protocols (Modbus, BACnet and Web)
  • Eurovent (N°21.03.72) and VDI 6022 certified solution, compliant with the requirements of the ErP Directive 2018
